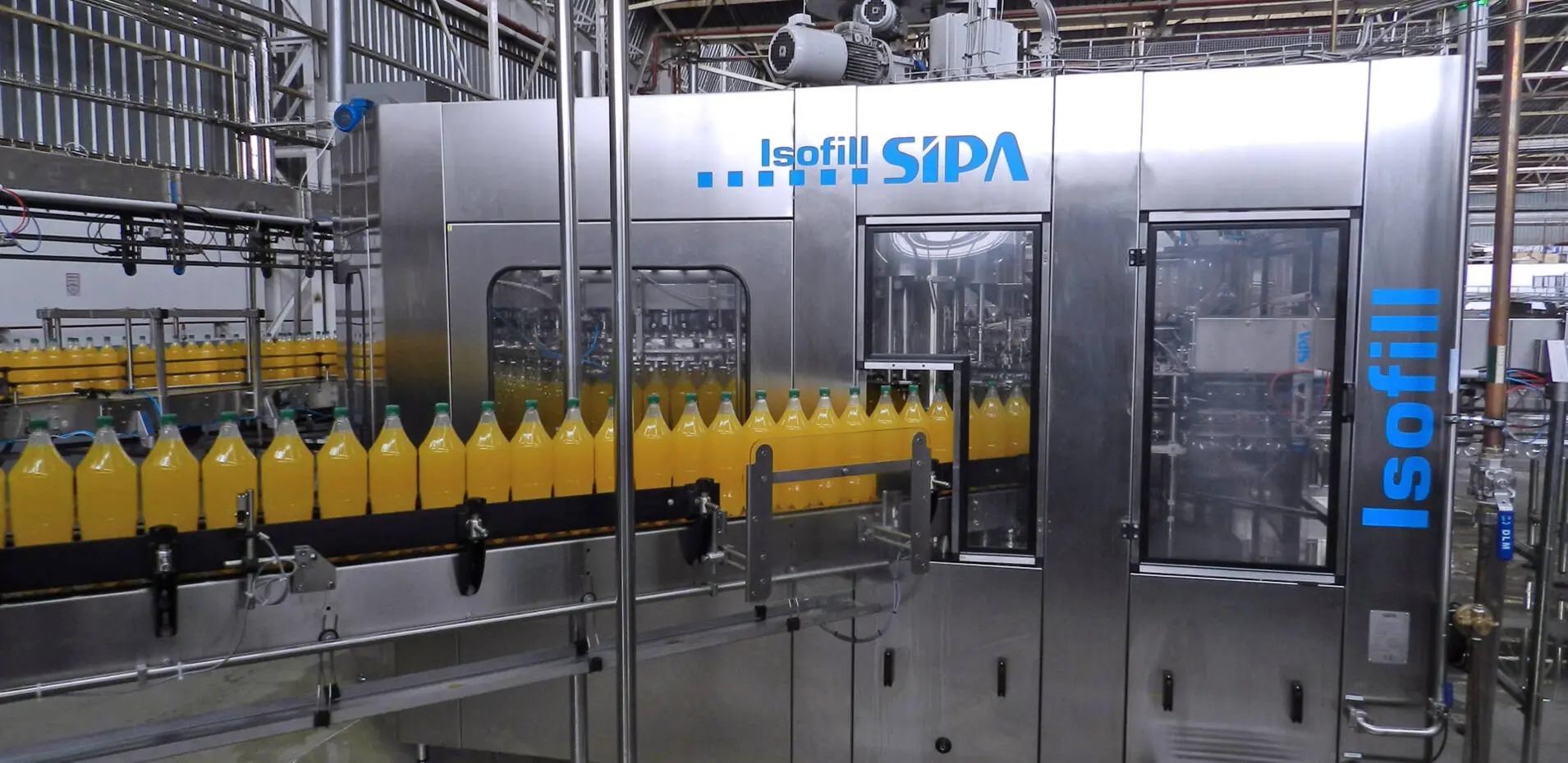

Isobaric filling monoblock for carbonated beverages in PET bottles

Mechanical level filler for carbonated products in PET bottles, it has an innovative design and is equipped with special features for both filling and moving the bottles, which guarantee great advantages in terms of performance and operating flexibility. The valve is also able to fill non-carbonated products.

DOWNLOAD PRODUCT BROCHURE

HIGHLIGHTS

Reliable, simple and easily sanitized valve.
Valve with height adjustable moving filling tube to define the level in the bottle.
Automatically engaged dummy bottles.
Foam reduction solutions allow excellent filling performances even at ambient temperature.
Reduced changeover down-times.
Valves made entirely of AISI 316 stainless steel.

GENERAL FEATURES

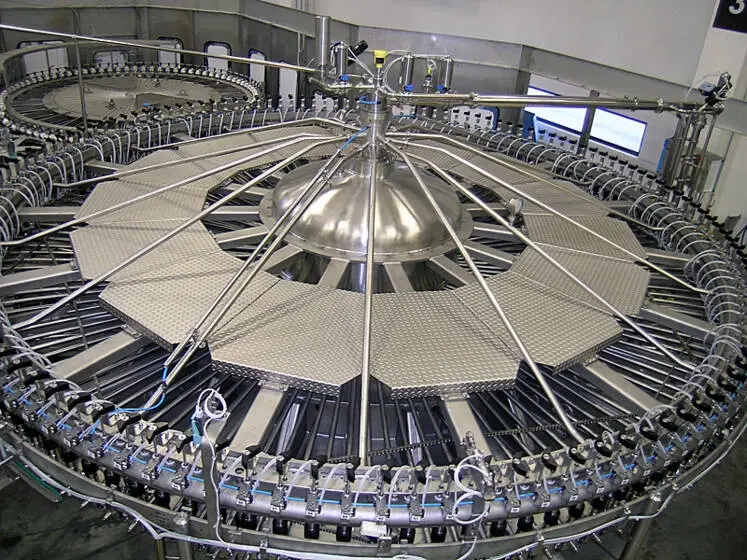

Central tank.
Entirely stainless steel (grade 304) draining base.
Valve with height adjustable moving filling tube to define the level in the bottle.
Reliable, simple and easily sanitized valve.
Reduced changeover down-times.

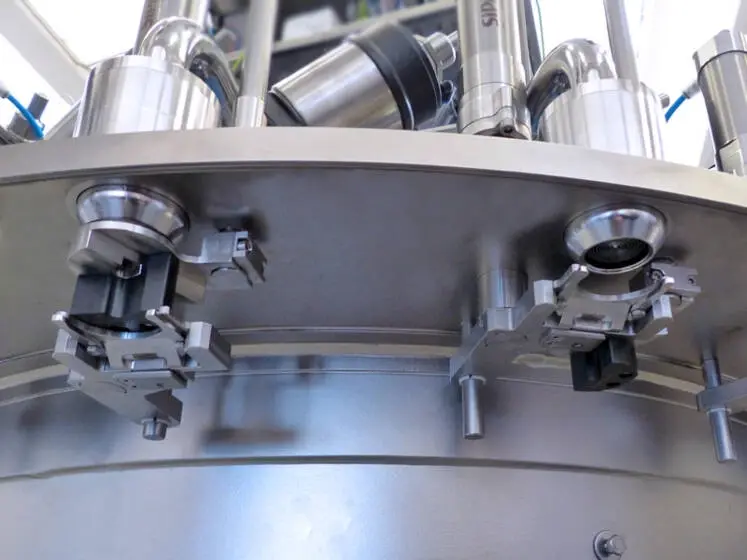

PET bottle transfer - neck-handling - with no need for monobloc height adjustment
Sincro Bloc configuration available, for an integrated blowing- filling-capping solution.
Controlled contamination cabin and cap sterilizing unit available in option in order to enhance hygienic standards.

ADVANTAGES

Product deflection without deflector (swirling device).
A single filling tube for all the bottle sizes.
Automatically engaged dummy bottles.
Manifolded decompression carried out with the filling tube raised.
Quick changeover for packages with different neck and bottle diameters.

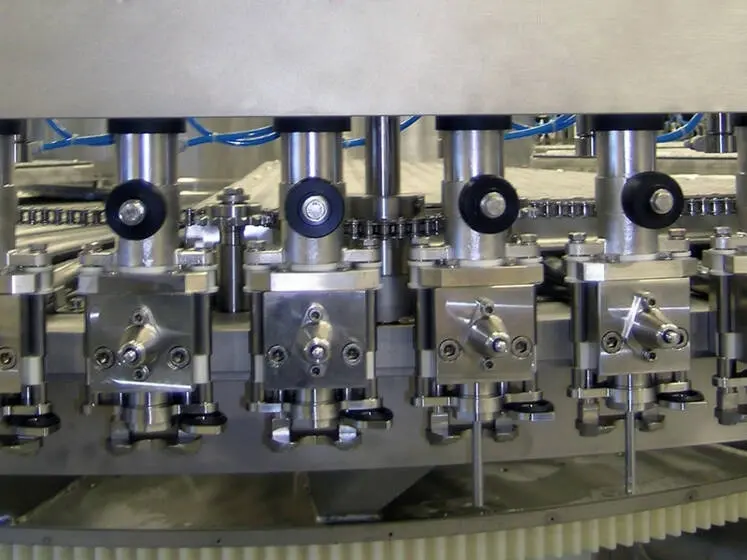

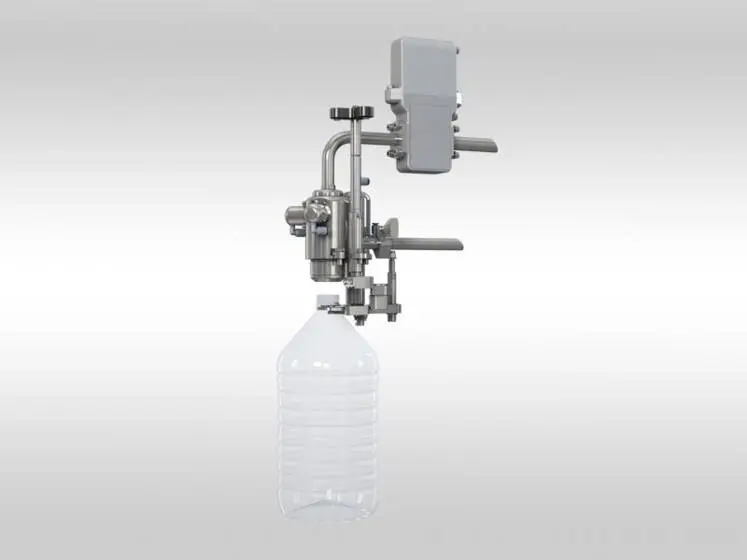

FILLING VALVE

Double filling speed with final slow speed phase is obtained by means of a 3-position actuator.
No contact electronic valve with volumetric filling controlled by a magnetic flow meter.
Thefinal slow phase allows the foam to collapse before closing.
The version with mass flow meter, ideal for viscous or low conductivity products, such as edible oil, deminaralised water, etc.
The nozzle with wide pass-through sections was designed to obtain the highest flow through the bottle neck and to minimize the turbulence of the product.

HYGIENE

Extreme sanitizability is one of the most important elements of this valve, characterized by a limited number of components and of moving parts.
The sanitation phase is very simple and is managed fully automatically through a control on the communication keyboard: the cycle is carried out in such a way that the solution laps against all the internal areas of the filler with forced flows.
The dummy bottles are loaded automatically.
Circuit preset for CIP and SIP up to 100 °C.

Materials

PET Bottles from 0,125 to 3000 ml

Type

The filler is designed for PET bottles filling.

Models

Isofill P: for PET bottles

Output

Fillers with from 20 to 140 valves
from 3,900 to 30,000 b/hour on 1.5 litres with CSD (13°C).

ISOFILL APPLICATIONS

The main products that can be processed are: carbonated beverages , such as mineral water and CSDs, still mineral water, clear cold filled juices , cold filled isotonic and sport drinks, and beer.
