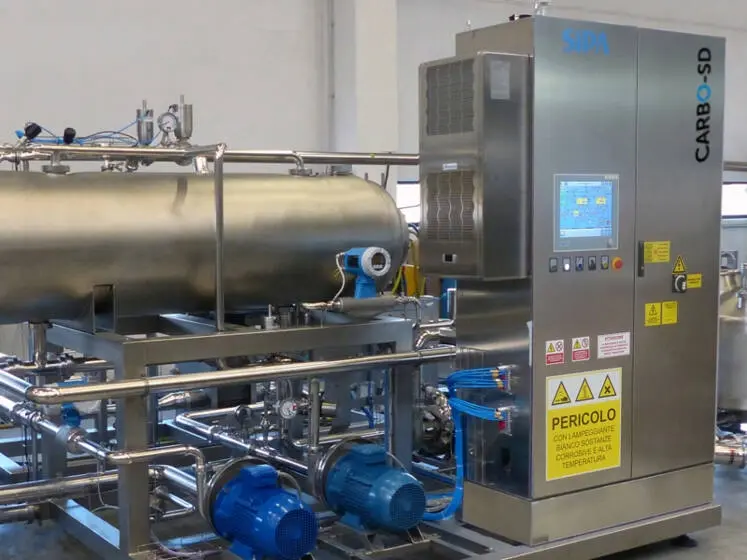

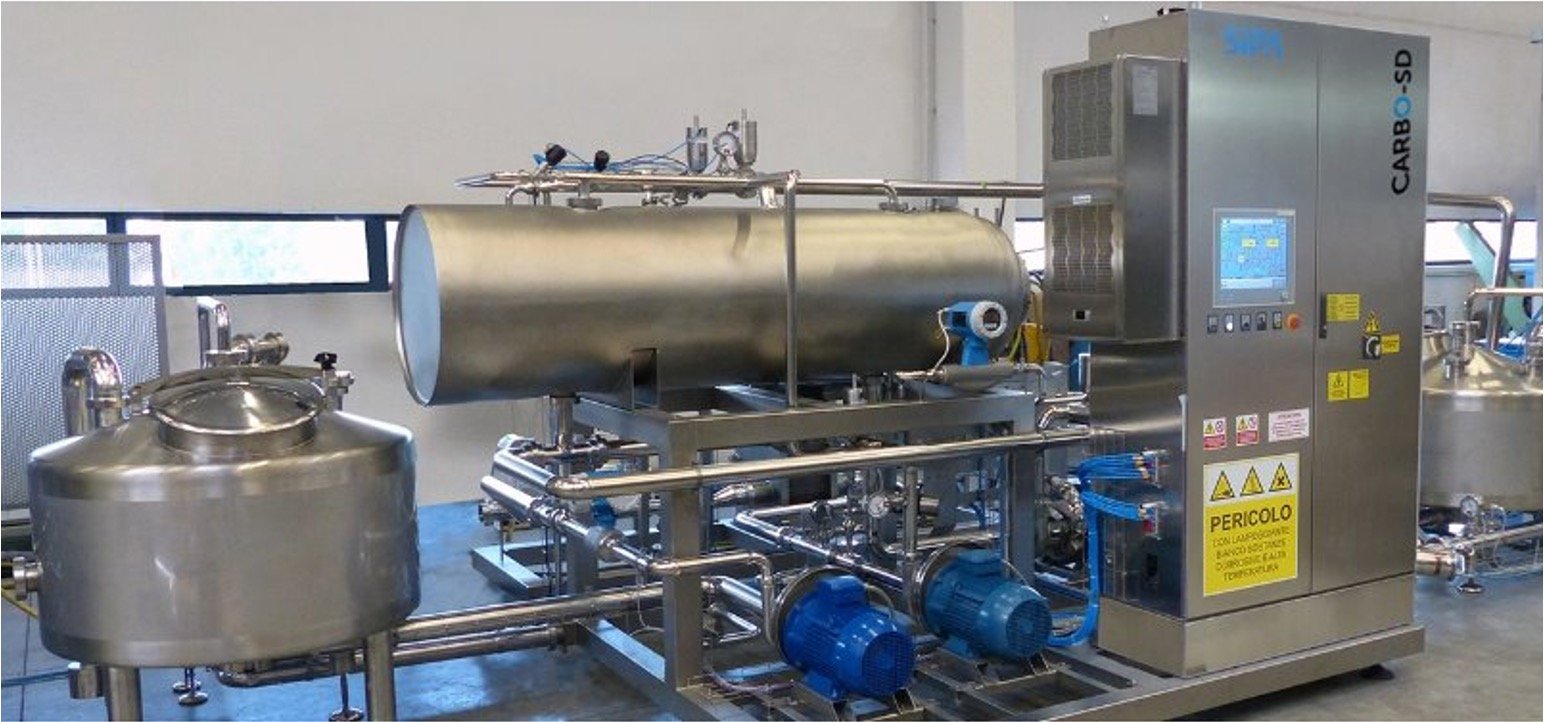

Carbo-SD is a compact carbonating unit for the automatic production ofcarbonated beverages: the system uses the latest technologies in the carbonation field; the carbonation processis obtained by using an in-line proportional dosing.
Highest final product standardsin terms of quality, accuracy and repeatability.
The carbonation is obtained by using an in line proportional dosing of CO2.
Xfill version available, for a direct integration with the filler.
Mass flow meterto control the CO2 quantity.
Design extremely compact, thanks to the tank’s horizontal arrangement.
Very easy logistic: machines are packable in containers for fast installation and commissioning.
GENERAL FEATURES
/
02
Fully automatic processcontrolled by a PLC, menu-based 15-inch touch-screen operator control panel.
Frequency-controlled pumps.
Highly hygienic design concept, for easy cleaning and to provide the highest levels of sanitation in the equipment.
Product flow control by means of level regulating system in the buffer tank.
Outflow rangeability: 1:4.
Gentle product handling.
Economical use of space, thanks to the tank’s horizontal arrangement.
Reduced gas consumptionthrough capacity control in accordance with the level in the carbonation tank.
FINAL PRODUCT PERFORMANCE
/
03
Carbonation range: 1,5 ÷ 4,5 V/V .
Dosing accuracy for CO2: ± 0,05 g/l of CO2 or better (in steady conditions).
Cpk capability > 1,33 related to final product.
PRINCIPLE OF OPERATION
/
04
Carbonation The CO2 is fed to the system by using a modulating valve and a mass flow meter, a special diffuser is installed to obtain an homogeneous dissolution of the desired CO2 quantity, moreover the dispersion of gas is realized through a static mixer to achieve a fine mixing of CO2 into the final product.
MODEL
CAPACITY
Carbo-SD 12
Up to 12,000 l/h
Carbo-SD 27
Up to 27,000 l/h
Carbo-SD 34
Up to 34,000 l/h
Carbo-SD 42
Up to 42,000 l/h
Carbo-SD 54
Up to 54,000 l/h
Carbo-SD 66
Up to 66,000 l/h
CARBO-SD APPLICATIONS
Carbonated soft drinks.
