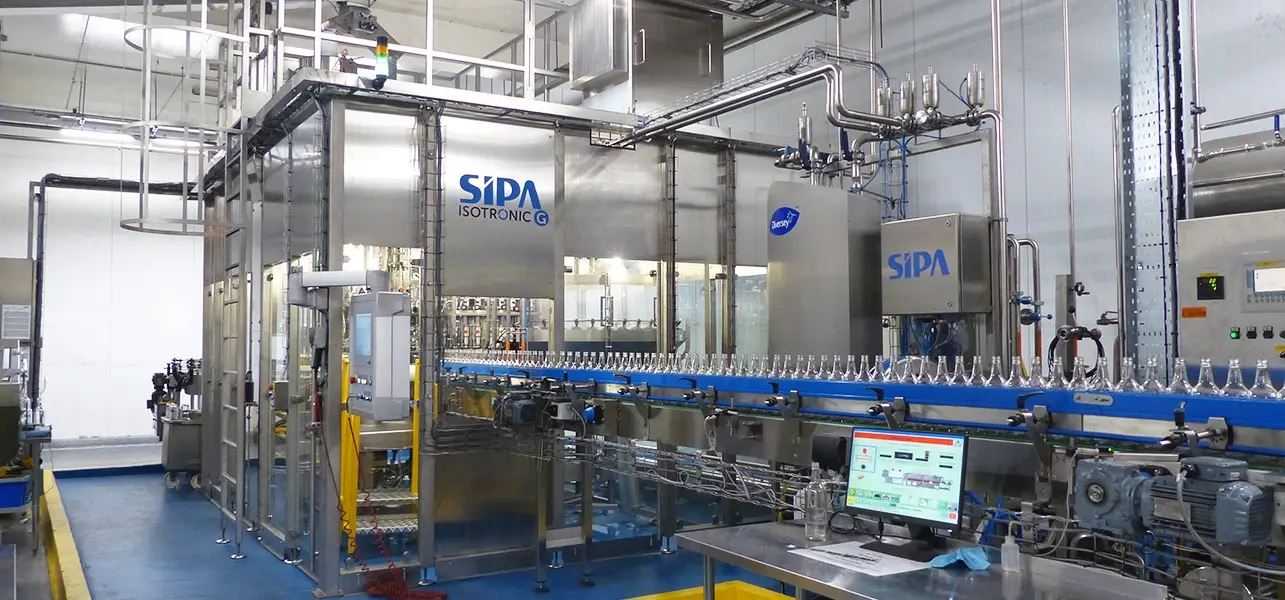

Isobaric filling monobloc for glass and PET bottles
Isotronic G filling monobloc is the perfect solution for companies handling a mix of bottle types. Not only can it fill single-use and refillable (RefPET) PET bottles, but it also works with glass bottles. It can handle bottles using screw tops and crown tops. And can fill with all sorts of still and carbonated drinks.
This isobaric electro-pneumatic level filler has numerous innovative design features to guarantee significant advantages in terms of performance and operating flexibility. It is available in versions with between 20 and 100 valves, with output rates of up to 50,000 bottles per hour.
Low maintenancethanks to the absence of a pneumatic lifting cylinder

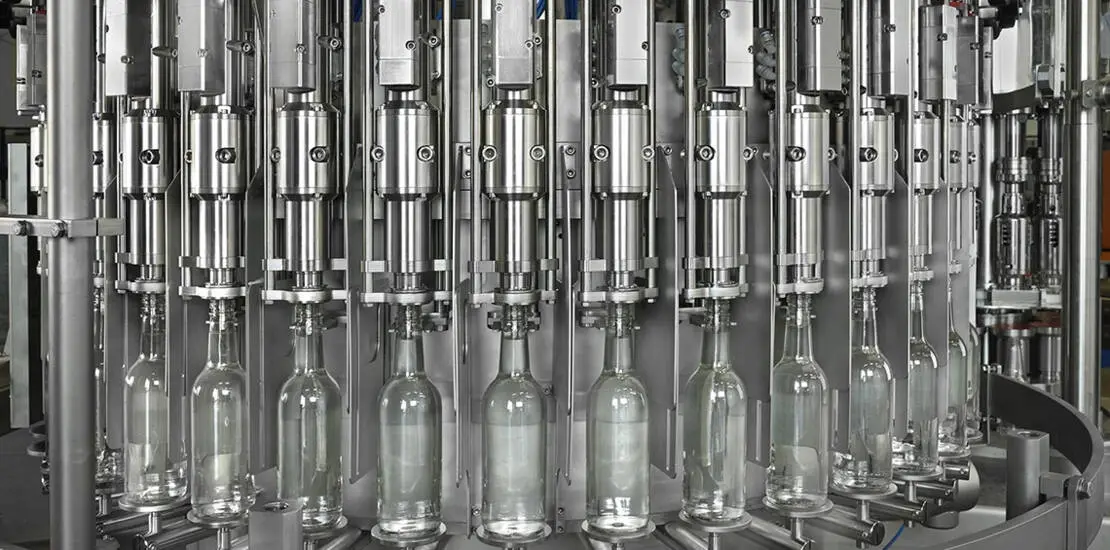

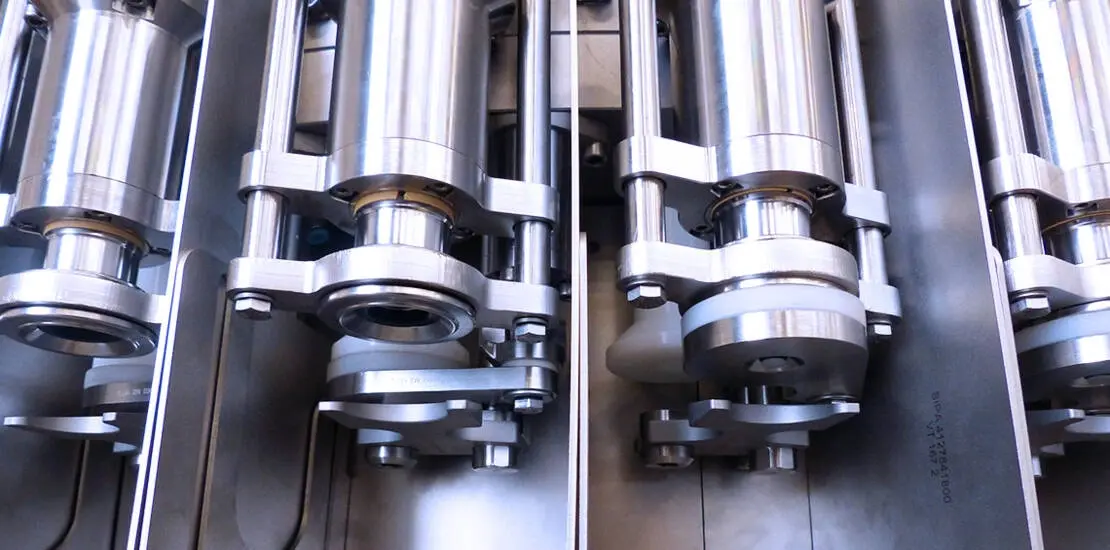

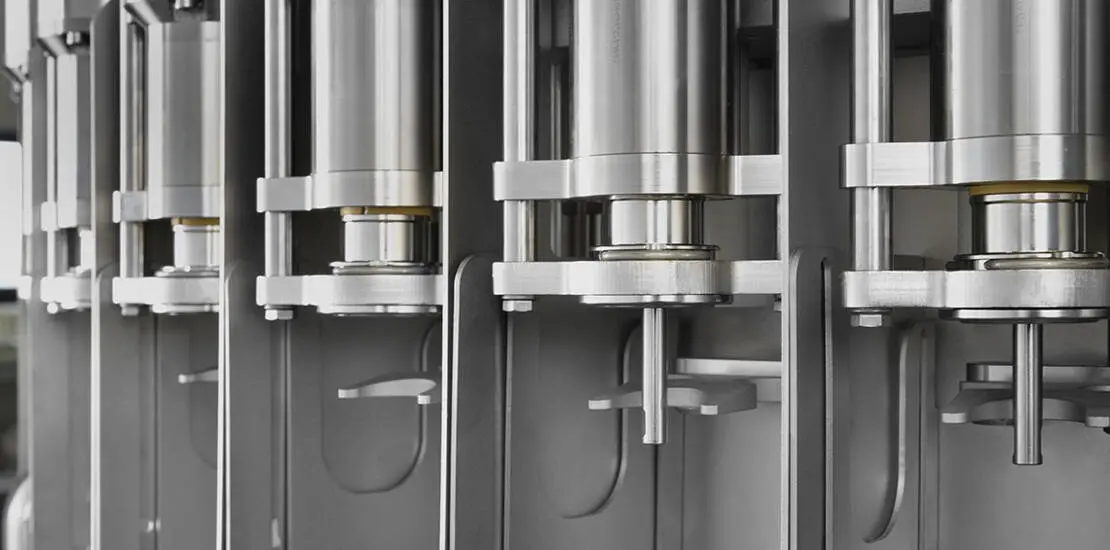

FILLING VALVE
/
04
Amechanical level valvewith extremely reliable and sturdy moving filling tube and centering cup: allows the positioning of the bottle without any movement in height.
Designed with a limited number of componentsfor a complete cleaning, to avoid every possible area of product stagnation
The pressurization of the bottle takes place through adedicated circuit free of liquid particles(dry pressurization), this guarantees less foaming during filling of CSD
Inside the valve,the product circuit is isolatedfrom the outside “control circuit” through a membrane with a total absence of sliding gaskets
The air returningfrom the bottle never comes into contact with the product inside the tank,
Centralized controlfor the simultaneous height adjustment of the filling tube for all the valves
The decompression phase (Snift)takes place with the vent tube raised, reducing foaming and product loss.The residue is collected and discharged.
HYGIENE
/
05
The sanitation phase is very simple and is fully automatic, by means of a control on the operator panel: the machine prepares itself for the electro-pneumatic control of all the on-off valves.
The sanitation cycleis carried out in such a way that the solution laps against all the internal areas of the filler with forced flows.
Automatic dummy bottles:Thanks to the moving filling tube that characterizes the filling valve, it was possible to make an engagement/disengagement system with extremely simple and functional electro-pneumatic control that ensures there is no contact between operator and machine.
The absence of a pneumatic lifting cylinderguarantees greater cleanliness: no lubrication of the moving parts.
Circuit preset for high temperature CIP.
Materials
Bottles from 0,125 to 3000 ml
Type
The filling machine has been designed for filling glass, PET and refPET bottles
Output
Fillers from 20 to 100 valves
Up to 50,000 b/h
APPLICATIONS
The main products that can be processed are: carbonated mineral water and CSD, still water and juices.
